Product description

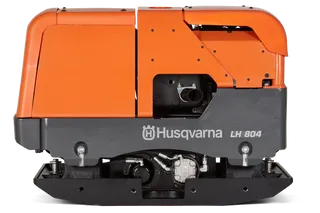

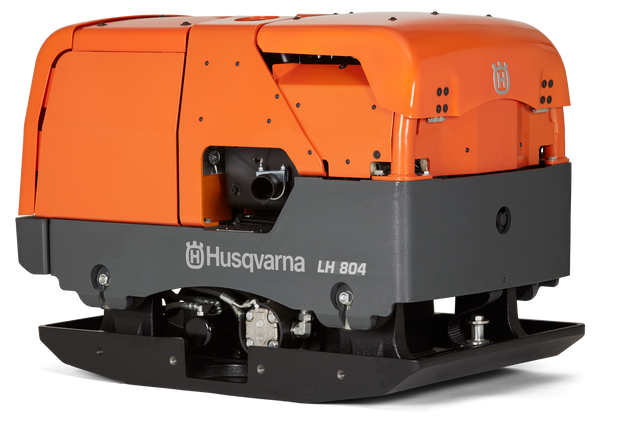

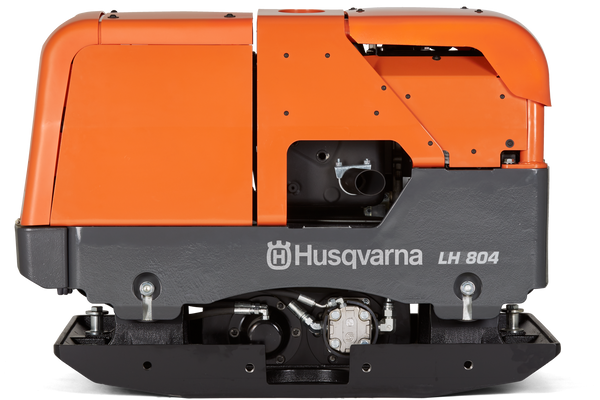

LH 804 is our most powerful compactor. It is fully hydraulic and has the power and capacity to effectively handle compaction of medium to thick layers of granular soil – from sand to rock fill. LH 804 is remote controlled, which allows the operator to stay at a distance from noise, diesel fumes and vibrations. It comes equipped with a Hatz 1D90V diesel engine and features a service friendly design and sturdy protective frame.

Discover all features and learn more about the benefits

Showing 4 features

No hand and arm vibrations

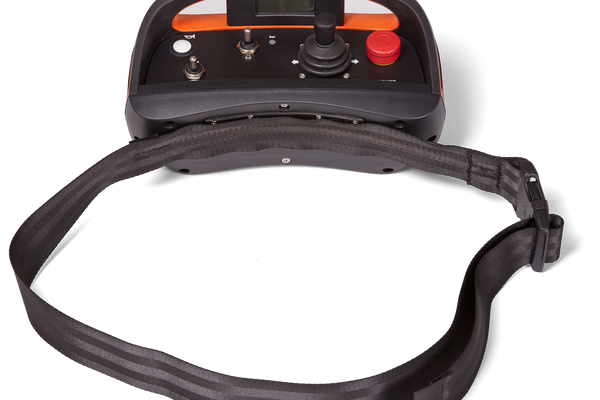

Bluetooth remote control lets you work up to a distance of 30 metres away in all weather conditions. This means no vibrations, no fumes and an unrivalled view of the worksite.

Always in charger

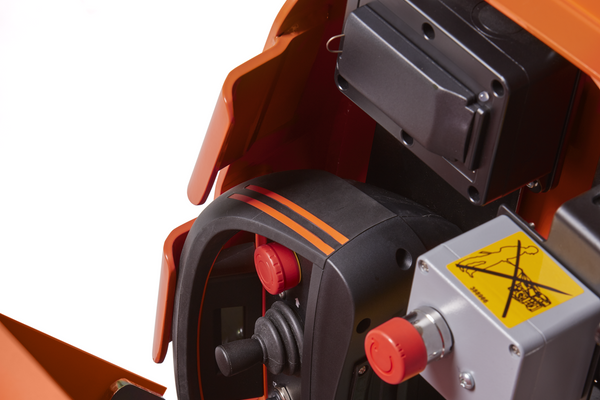

To avoid a discharged battery, the remote control comes with two batteries to switch between, of which one can always be kept charging in the dock station under the engine hood.

Handles the toughest jobs

The fully hydraulic reversible plates are made to effectively handle even the most demanding jobs.

Sturdy and service friendly

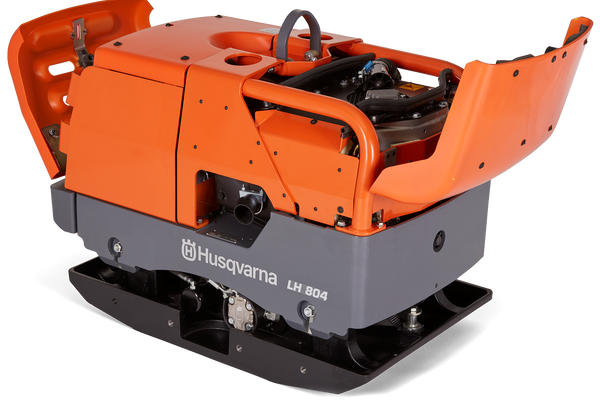

Well-dimensioned protection frame and impact resistant covers protect the engine, transmission and radio receiver, while the foldable hood ensures easy access to all vital parts.

Get full product details and all technical specifications

Top specifications

Power sourceDiesel

Plate width660 mm

Weight (complete product w/o side packed articles)820 kg

Centrifugal force95 kN

Recommended accessories that fit this model

Plates, blades and discs

Extension plates

2 variants

Accessory for

Reversible plate compactors

Operator's manuals

OM. LH 700, LH 804. 2022-06

Language(s): EN

Published: 6/16/22

Size: 2.97 MB
